# 9. OPC-UA-based Information Model and Data Access

# 9.1 Basic Operation

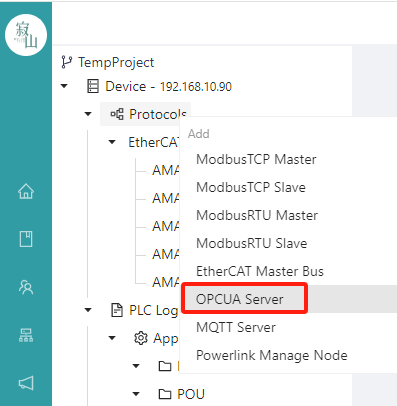

Adding OPCUA Server Function

# 9.2 Configuring OPC-UA Server

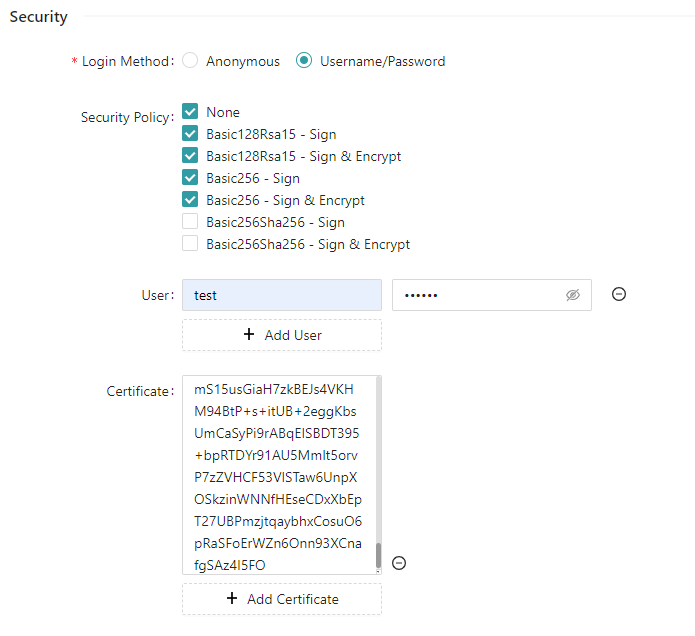

# 9.2.1 Login

There are two login methods: anonymous login and username and password login.

  • Log in anonymously

  • Log in with your username and password

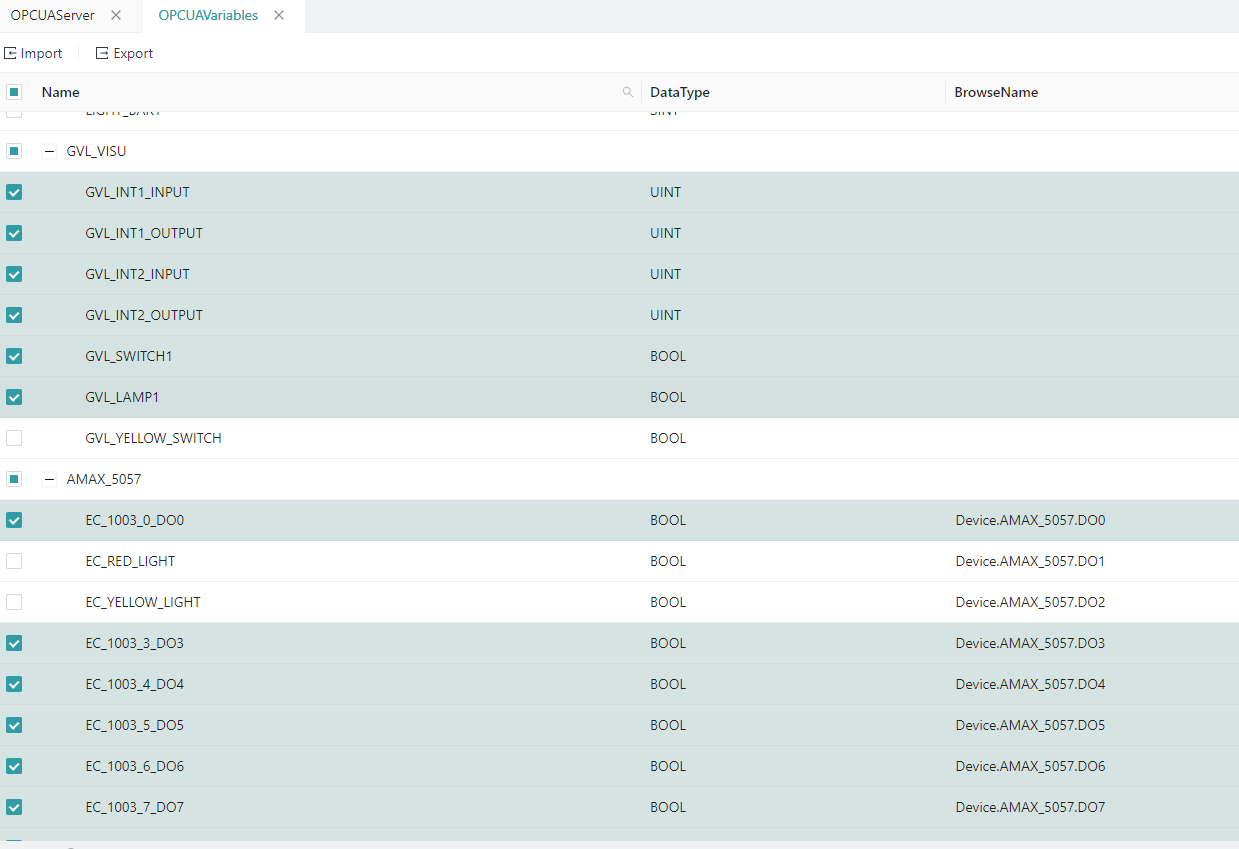

# 9.2.2 Variables Monitoring

To monitor variables , you can select the variables to be monitored on the Variables tab page.

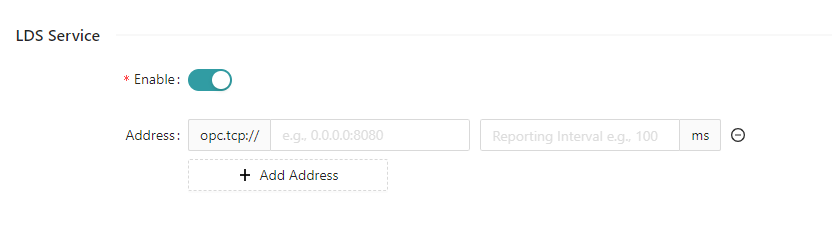

# 9.2.3 Service Discovery

The service address is the address of the LDS server, and after service discovery is enabled, the OPC-UA server periodically registers/updates the OPC-UA Server information with the LDS server at the reporting interval entered by the user.

# 9.2.4 Channel Encryption

OPC-UA Server supports the following encryption methods:
